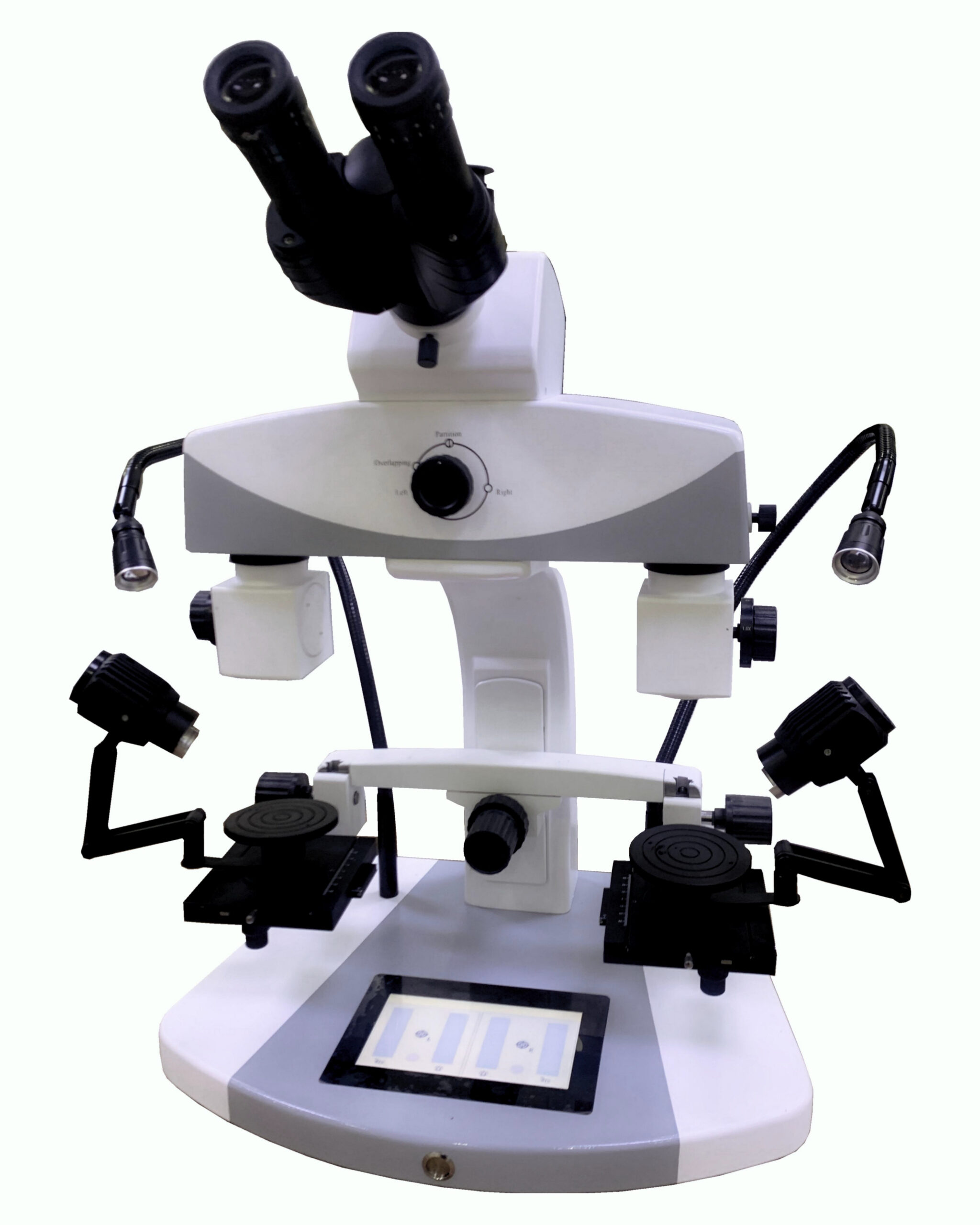

GXM – AXB-5 Comparison Microscope for Forensics up to 40X Magnification Includes Digital Camera, Fully Equipped with a Huge Range of Accessories Included.
A high quality microscope with integrated micro and macro viewing systems forย the comparison, side-by-side of two objects.
This microscope is commonly used in forensics for examining ballistics, fibres, toolย marks and other materials and also in archaeology, palaeontology and otherย collections and artefact identification studies.
This microscope is supplied complete with 2 sets of eyepieces and 4 magnification settings giving magnifications of 6.4x, 16x, 25x and 40x, wiht the standard 10x eyepieces, more than enough to encompass most examination tasks. If more magnification is needed, then 20x eyepieces are available.
The two tiltable stages include fine vernier movement controls and rotationย for easy specimen manipulation. The long working distance of 100mmย makes specimen mounting very simple. The microscope includes bothย conventional and cold light sources giving plenty of flexibility.
A range of other useful accessories such as bullet andย cartridge holders can be mounted onto the microscope; it is designed toย be versatile tool for the widest range of specimens.
This microscope includes our GXCAM-U3PRO-6.3 camera which presents a live image of the split image onto your comptuter and stores high resolution images and movies.
| Microscope Type |
Comparison Microscope |
| Head |
Comparison head with splitter and merging facilities with adjustable overlap. Camera port with camera adapters |
| Eyepieces |
10x/23mm, 20x/12.5mm |
| Magnification Settings |
0.64x, 1.6x, 2.5x, 4x |
| Working Distance |
100mm |
| Mechanical Stage |
100 x 100mm, movement 54 x 54mm |
| Illumination |
LED. Polarized light โ traces, scratch marks comparison Coaxial light โ deep holes, smooth surface illumination Transmitted light illumination โ photographic film, transparent or translucent objects comparison |
| Camera |
5MP Digtal USB Microscope Camera with GXCapture Software |
